配置交换机端口安全

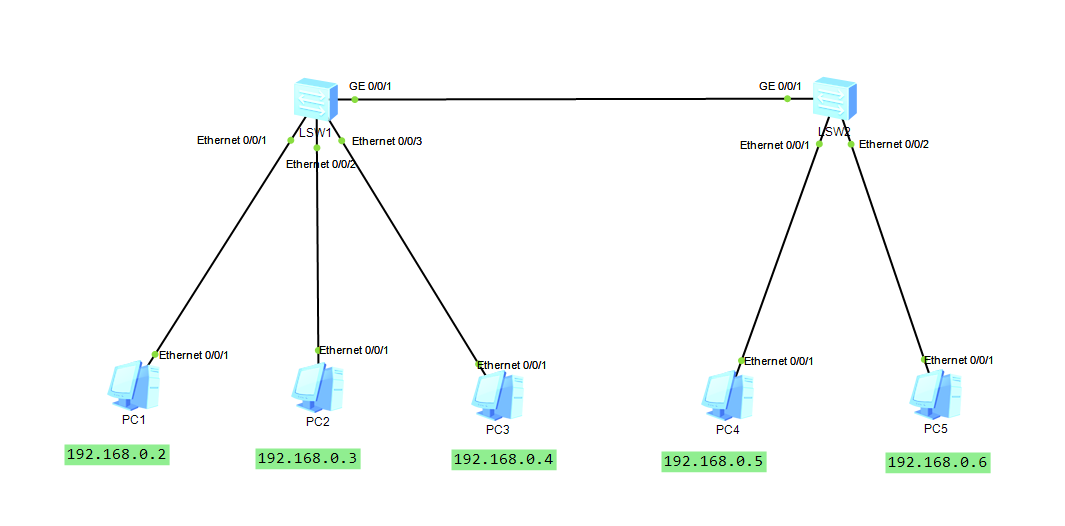

实验一、绑定MAC后，更改MAC地址，不能正常通讯

<Huawei>sys
[Huawei]port-group 1to3
[Huawei-port-group-1to3]
[Huawei-port-group-1to3]group-member Ethernet 0/0/1 to Ethernet 0/0/3
[Huawei-port-group-1to3]display this
#
port-group 1to3
 group-member Ethernet0/0/1
 group-member Ethernet0/0/2
 group-member Ethernet0/0/3
#
return

[Huawei-port-group-1to3]port-security protect-action ?
  protect   Discard packets
  restrict  Discard packets and warning
  shutdown  Shutdown

[Huawei-port-group-1to3]port-security protect-action shutdown
[Huawei-port-group-1to3]undo port-security protect-action
[Huawei-port-group-1to3]port-security protect-action shutdown
[Huawei-port-group-1to3]quit

[Huawei]interface Ethernet 0/0/1
[Huawei-Ethernet0/0/1]port-security max-mac-num 1
[Huawei-Ethernet0/0/1]quit

[Huawei-port-group-1to3]port-security mac-address sticky
[Huawei-port-group-1to3]quit

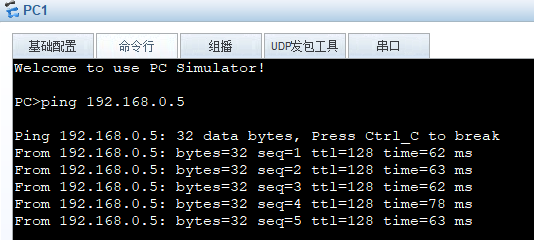

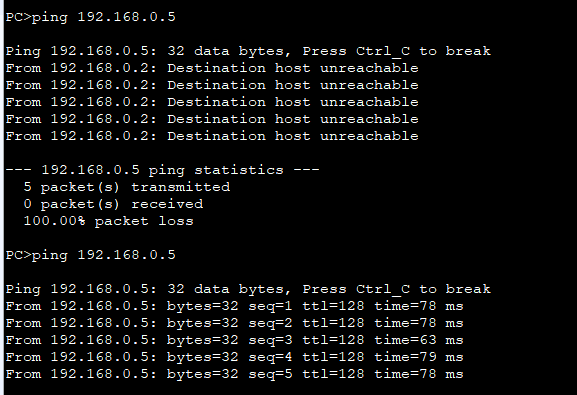

PC1可以PING通PC5

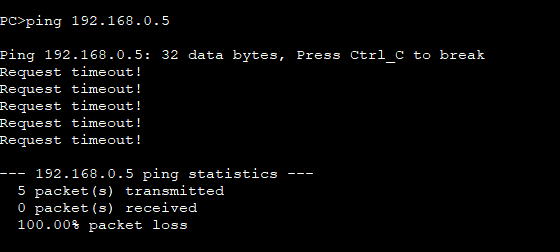

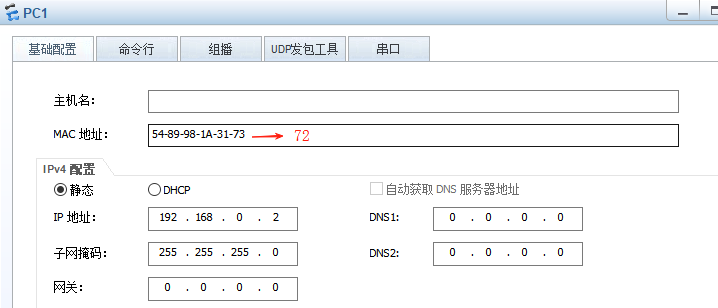

PC的MAC地址73改成72

MAC地址改回73之后，必须开启节点才能启动

[Huawei]interface Ethernet 0/0/1
[Huawei-Ethernet0/0/1]undo shutdown

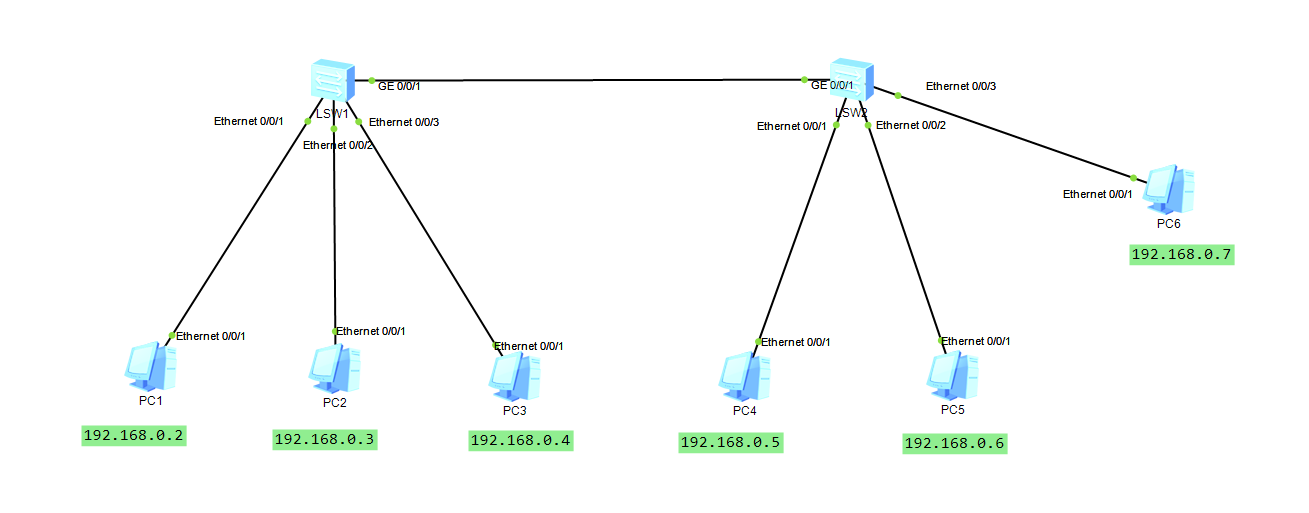

实验二、限制主机的数量

[Huawei-GigabitEthernet0/0/1]port-security enable
[Huawei-GigabitEthernet0/0/1]port-security max-mac-num 2
[Huawei-GigabitEthernet0/0/1]port-security protect-action protect
[Huawei-GigabitEthernet0/0/1]port-security mac-address sticky

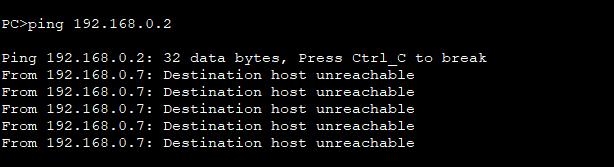

多加一台主机，使用PC7 PING PING1

PC7不能主动发起通讯

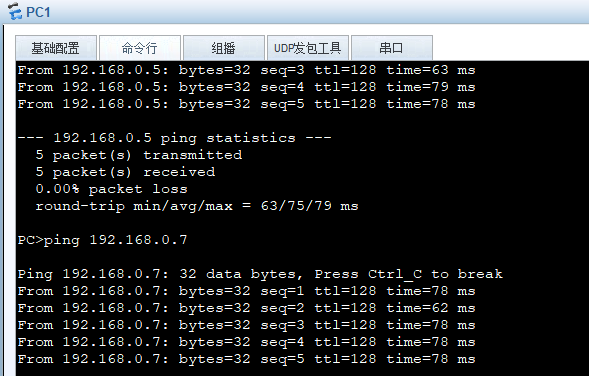

但是PC1发起的通讯却能正常运作

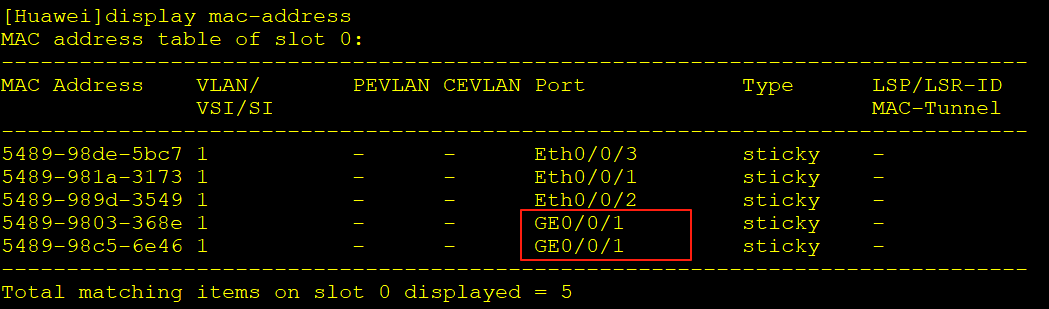

但是正常绑定的却只有两台

其他

#关闭信息中心
[Huawei]undo info-center enable

实验三、绑定指定的MAC地址

[Huawei]interface Ethernet 0/0/3
[Huawei-Ethernet0/0/3]port-security enable
[Huawei-Ethernet0/0/3]port-security protect-action protect
[Huawei-Ethernet0/0/3]port-security mac-address sticky
[Huawei-Ethernet0/0/3]port-security mac-address sticky 5489-9886-2B0C vlan 1
[Huawei-Ethernet0/0/3]display this
#
interface Ethernet0/0/3
 port-security enable
 port-security protect-action protect
 port-security mac-address sticky
#

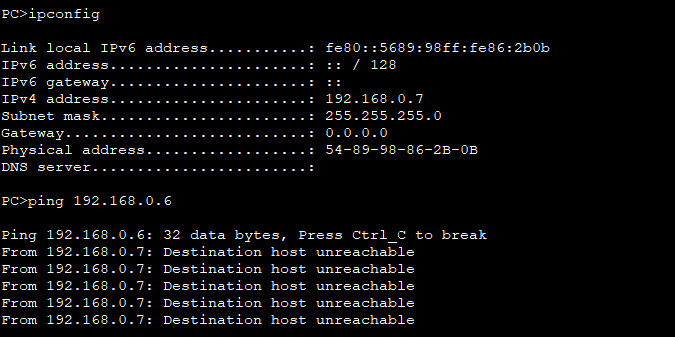

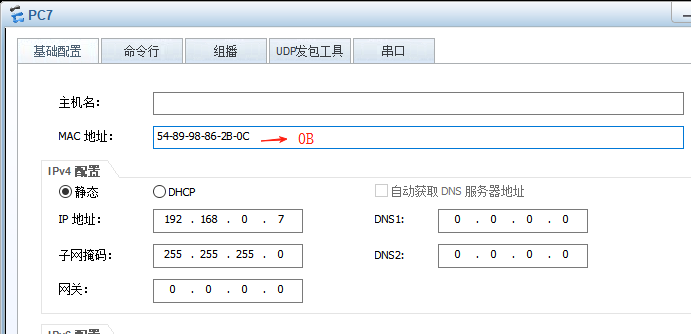

改PC7的MAC地址

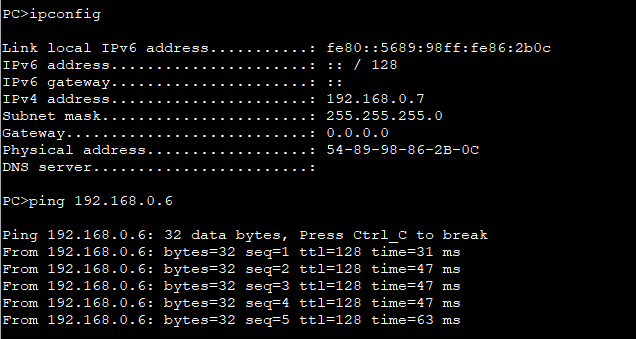

改回来就可以了

#清楚交换机接口配置
[LSW2]clear configuration interface Ethernet 0/0/4

交换机配置也记得保存一下
