基于终端的MAC自动分配VLAN

1.场景说明

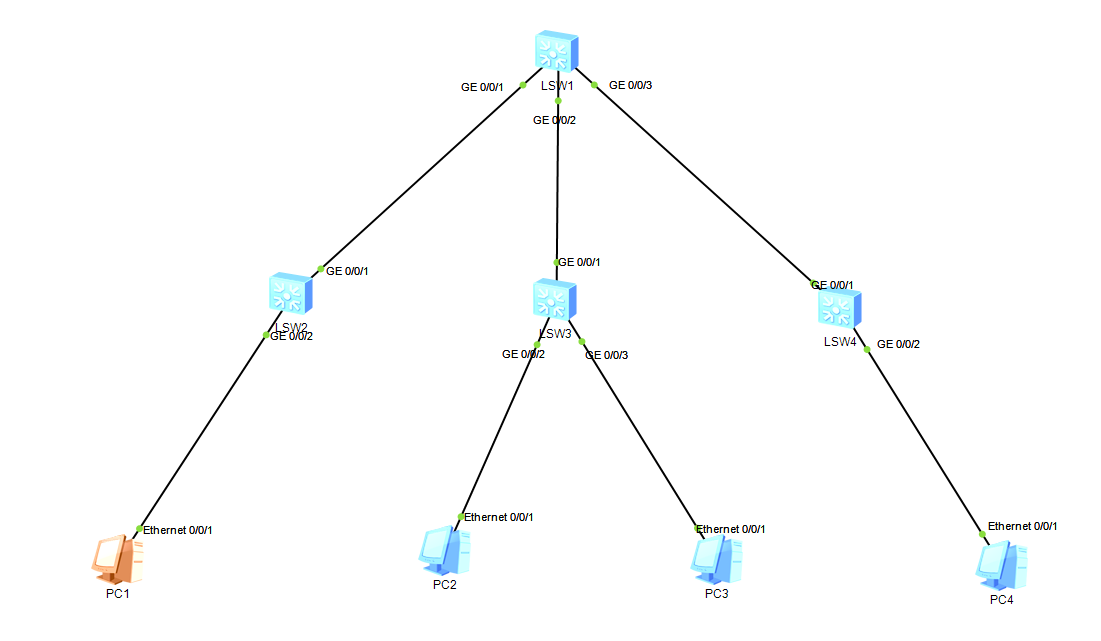

公司网络为“核心--接入”的两层结构
3台接入交换机均为傻瓜交换机
在核心交换机配置基于MAC地址自动分配VLAN的功能

实现如下要求：

部门	MAC地址	VLAN号
终端1	aaaa-bbbb-0001	11
终端2	aaaa-bbbb-0002	12
服务器20台	相同前缀 cccc-cc00-0000	100
打印机10台	相同前缀cccc-dd00-0000	101

2.配置交换机

<Huawei>sys
[Huawei]sys CSW

<Huawei>sys
[Huawei]sys ASW1

<Huawei>sys
[Huawei]sys ASW2

<Huawei>sys
[Huawei]sys ASW3

[CSW]vlan batch 11 12 100 101

[CSW]vlan 11
[CSW-vlan11]mac-vlan mac-address aaaa-bbbb-0001

[CSW-vlan11]vlan 12
[CSW-vlan12]mac-vlan mac-address aaaa-bbbb-0002

[CSW-vlan12]vlan 100
[CSW-vlan100]mac-vlan mac-address cccc-cc00-0000 ffff-ff00-0000

[CSW-vlan100]vlan 101
[CSW-vlan101]mac-vlan mac-address cccc-dd00-0000 24

[CSW-vlan12]dis mac-vlan vlan 12
---------------------------------------------------
MAC Address     MASK            VLAN    Priority
---------------------------------------------------
aaaa-bbbb-0002  ffff-ffff-ffff  12      0

[CSW]int GigabitEthernet 0/0/1
[CSW-GigabitEthernet0/0/1]undo port hybrid untagged vlan 1
[CSW-GigabitEthernet0/0/1]port hybrid untagged vlan 11 12 100 101
[CSW-GigabitEthernet0/0/1]mac-vlan enable

[CSW-GigabitEthernet0/0/1]int g0/0/2
[CSW-GigabitEthernet0/0/2]undo port hybrid untagged vlan 1
[CSW-GigabitEthernet0/0/2]port hy untagged vlan 11 to 12 100 to 101
[CSW-GigabitEthernet0/0/2]mac-vlan enable

[CSW-GigabitEthernet0/0/2]int g0/0/3
[CSW-GigabitEthernet0/0/3]undo port hybrid untagged vlan 1
[CSW-GigabitEthernet0/0/3]port hybrid untagged vlan 11 12 100 101
[CSW-GigabitEthernet0/0/3]mac-vlan enable

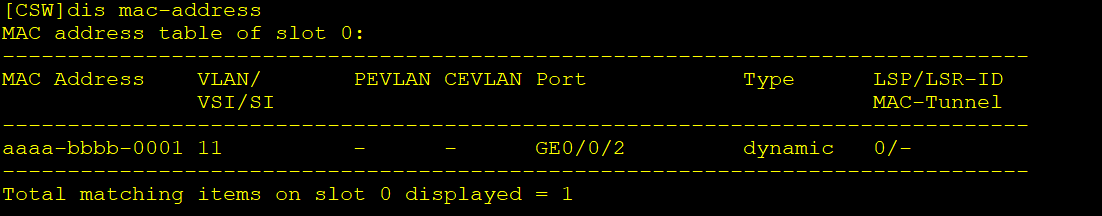

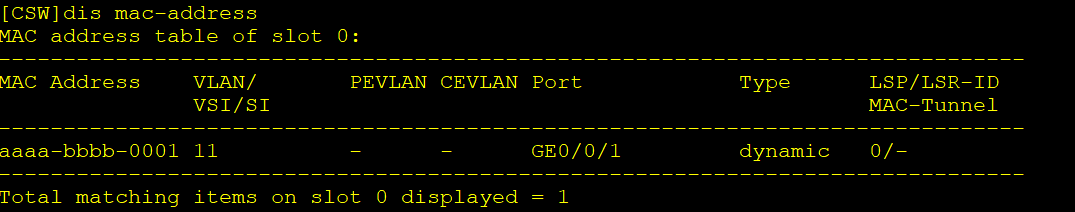

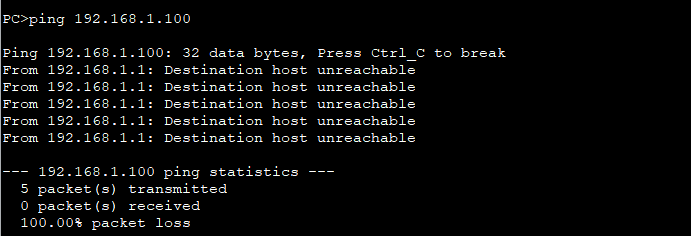

3.测试1

调整MAC地址的超时时间

mac-address aging-time

设置边缘接口

[ASW1]int GigabitEthernet 0/0/2
[ASW1-GigabitEthernet0/0/2]stp e e

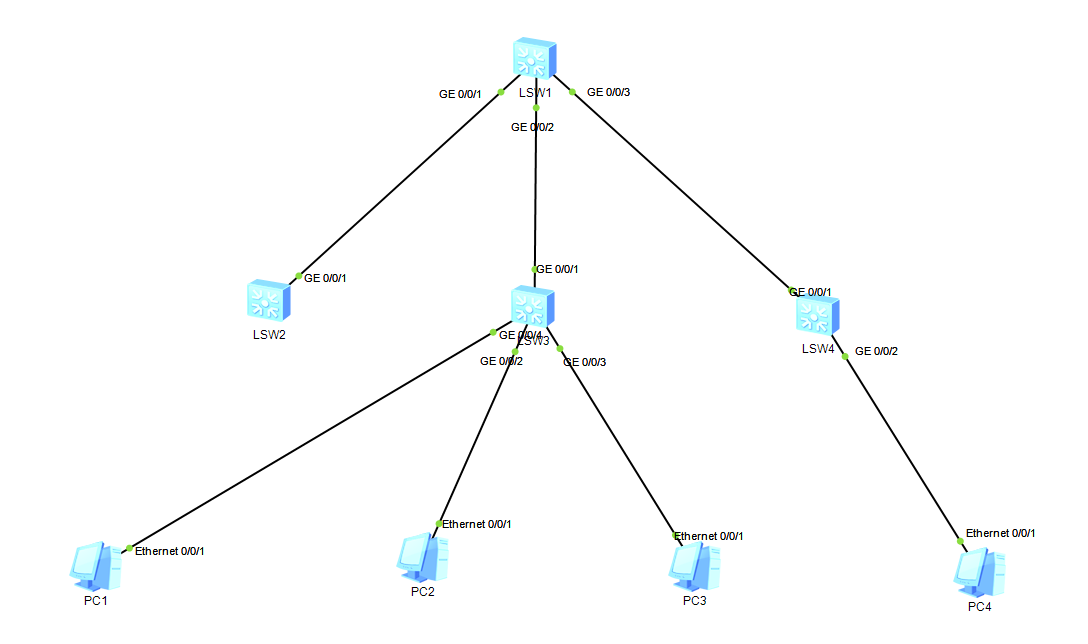

更改MAC地址

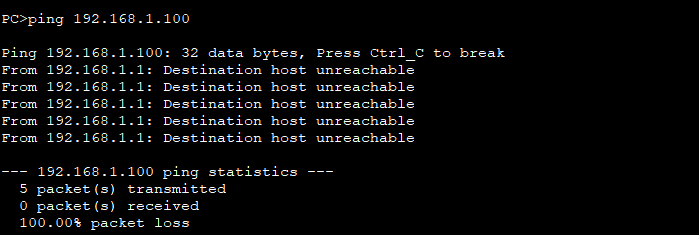

4.测试2

添加三层接口

[CSW]int vlanif 11
[CSW-Vlanif11]ip add 192.168.1.254 24
[CSW-Vlanif11]int vlanif 12
[CSW-Vlanif12]ip add 192.168.2.254 24
[CSW-Vlanif12]int vlanif 100
[CSW-Vlanif100]ip add 192.168.3.254 24
[CSW-Vlanif100]int vlanif 101
[CSW-Vlanif101]ip add 192.168.4.254 24

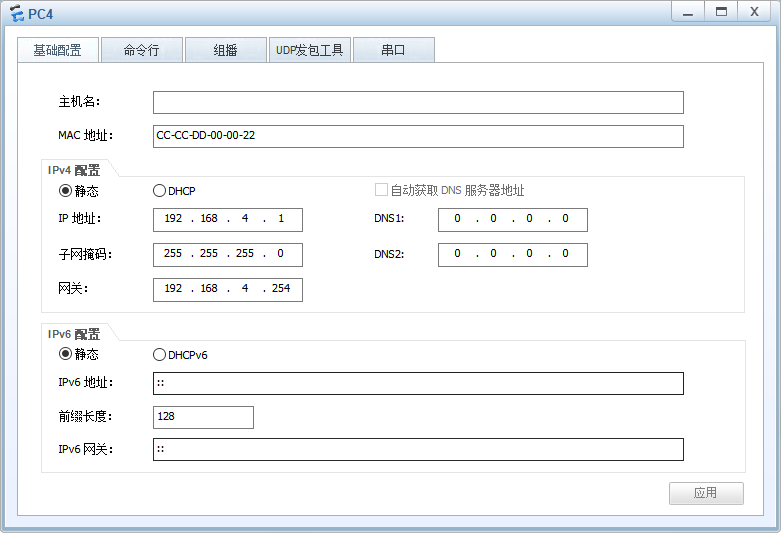

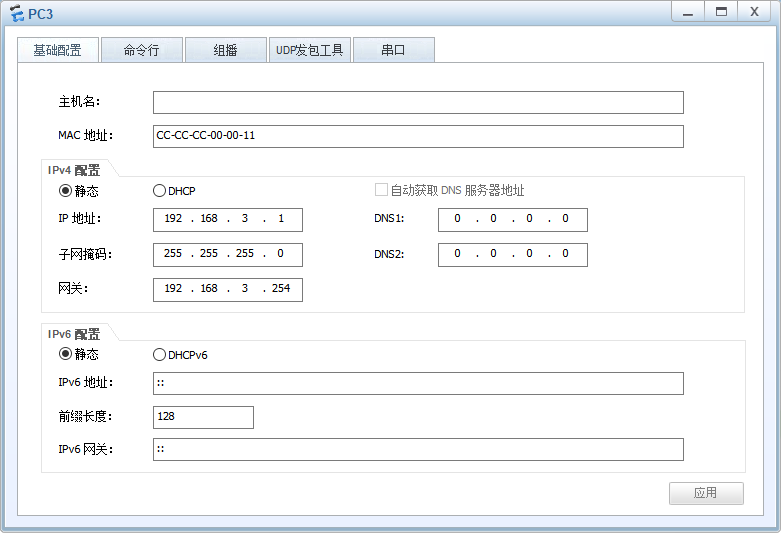

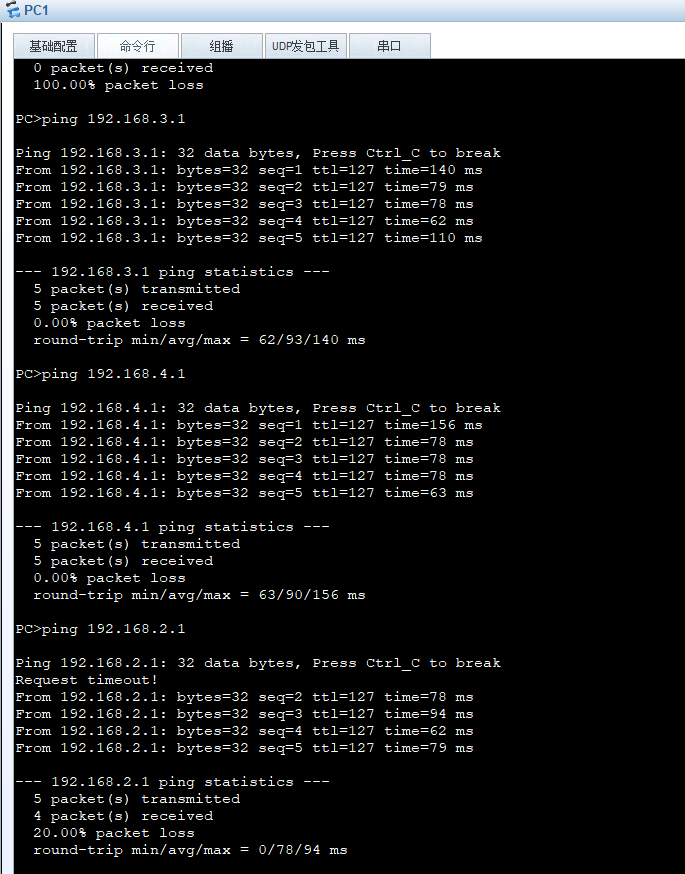

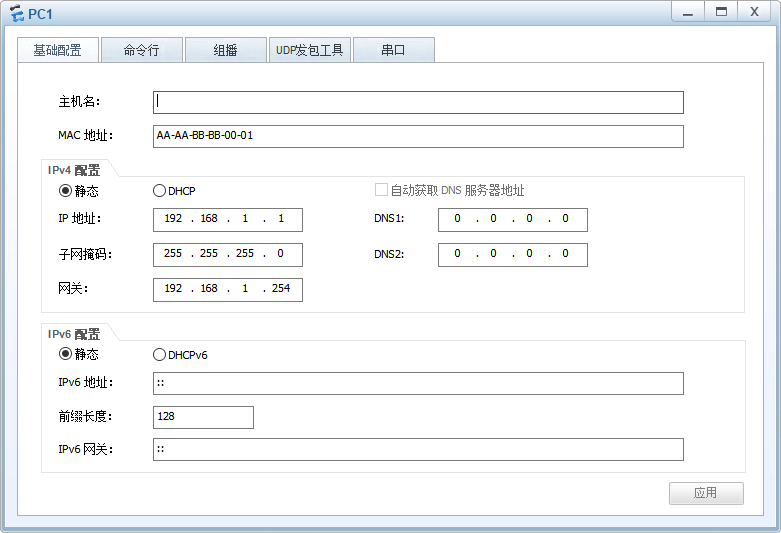

各PC的参数信息

	IP	网关	MAC
PC1	192.168.1.1	192.168.1.254	AA-AA-BB-BB-00-01
PC2	192.168.2.1	192.168.2.254	AA-AA-BB-BB-00-02
PC3	192.168.3.1	192.168.3.254	CC-CC-CC-00-00-11
PC4	192.168.4.1	192.168.4.254	CC-CC-DD-00-00-22

更改MAC地址
